Description
SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.
Sized just under 18" wide and 32" high, the SWC182ZCSSADA is front-breathing for built-in installation under lower ADA compliant counters. The cabinet is wrapped in 304 grade stainless steel for a professional look built to last. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included.
Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.
With its slim fit and convenient design, the SWC182ZCSSADA makes an attractive addition to any room.
Key Features
Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
32" height is designed to fit under lower ADA compliant counters
Make the best use of space by installing your appliance under the counter
304 grade finish on the exterior cabinet for a professional look with lasting durability

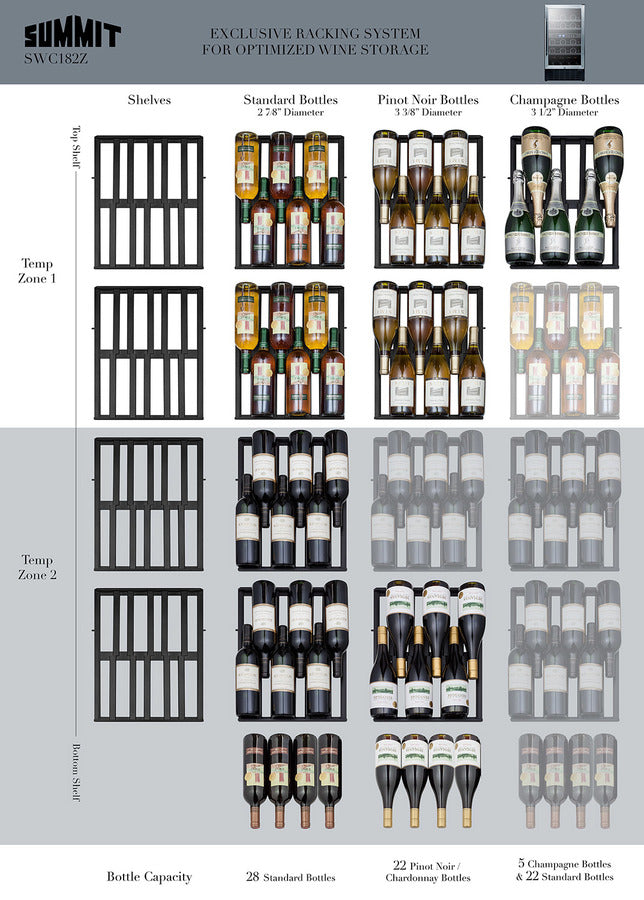

Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles
Provides a full display of stored contents with a heat-safe double tempered design
Keyed lock for a secure interior, with 2 keys included

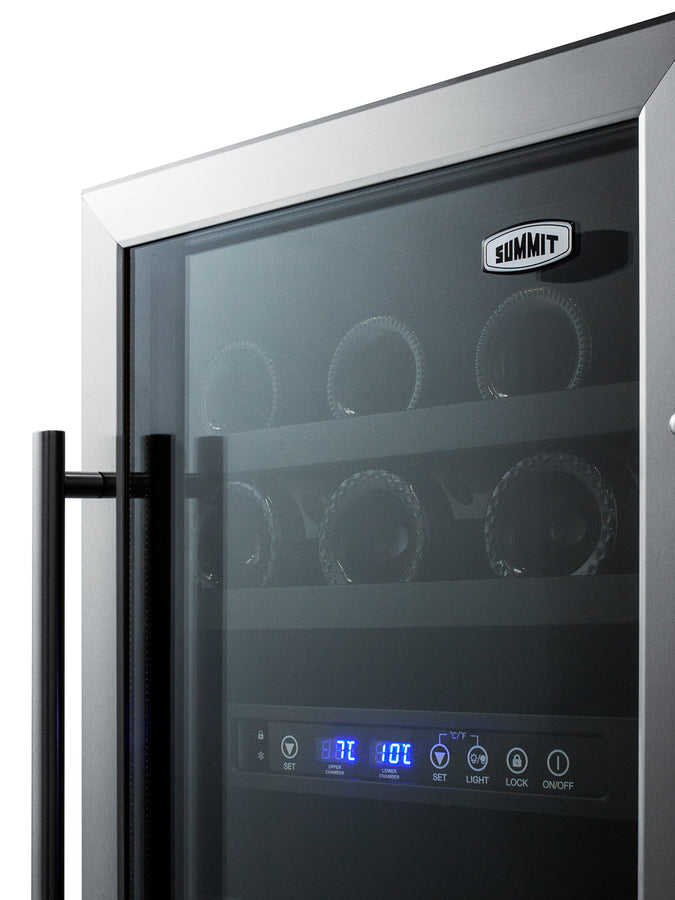

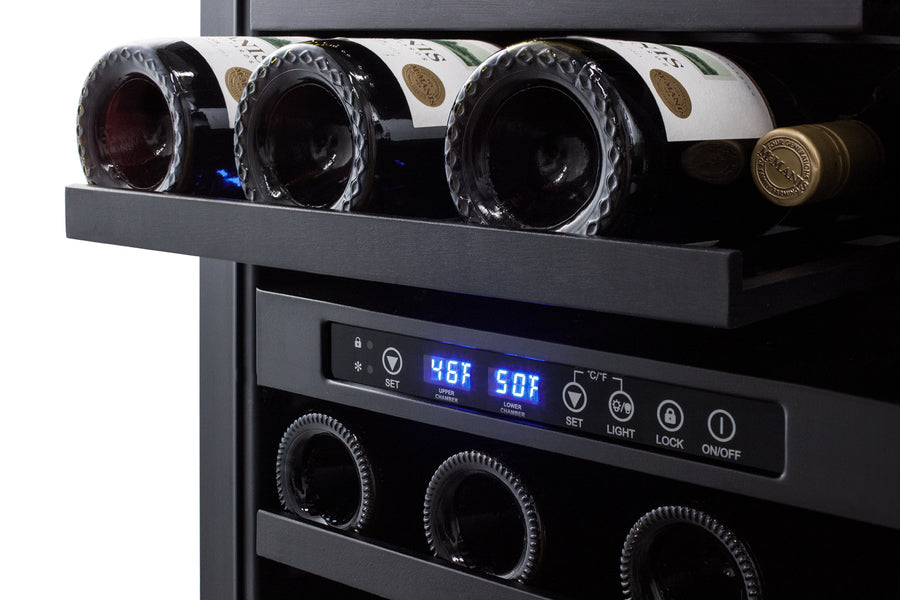

Electronic controls for precise temperature management.
Temperature readout can be shown in Celsius or Fahrenheit
Gentle illumination for each temperature zone for an elegant presentation
Reduced maintenance with the convenience of auto defrost
4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Stainless steel handle completes the look
Space saving design
Hinge is flush with cabinet, adding no additional height to the unit
Fully finished cabinet also allows freestanding use
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
|
|
---|---|
Height of Cabinet | 31.63" (80 cm) |
Width | 17.94" (46 cm) |
Depth | 23.5" (60 cm) |
Depth with Handle | 25.25" (64 cm) |
Depth with door at 90° | 39.75" (101 cm) |
Capacity | 3.3 cu.ft. (93 L) |
Bottles | 28 bottles |
Defrost Type | Automatic |
Door | Glass |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.25 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 95.0 lbs. (43 kg) |
Shipping Weight | 98.0 lbs. (44 kg) |
UPC | 761101058436 |
Wine Cellar
|
|
Number of Zones | 2 |
Door Swing | RHD |
Reversible | Yes |
Adjustable Shelves | Yes |
Shelf Type | Wood |
Shelf Qty | 4 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.23 oz. |
High Side PSI | 150.0 |
Low Side PSI | 50.0 |
Interior Height 1 | 10.63" (27 cm) |
Interior Width 1 | 14.25" (36 cm) |
Interior Depth 1 | 18.0" (46 cm) |
Compressor Step Height | 5.25" (13 cm) |
Compressor Step Width | 14.25" (36 cm) |
Compressor Step Depth | 5.0" (13 cm) |
Level Legs | 4 |
Temperature Range | 41º to 64ºF |
Interior Height 2 | 12.25" (31 cm) |
Interior Width 2 | 14.25" (36 cm) |
Interior Depth 2 | 18.0" (46 cm) |
Available Upgrades
Exterior | |||||
---|---|---|---|---|---|
|
|||||
Door | |||||
|
Included Warranty
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
