Description
SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.

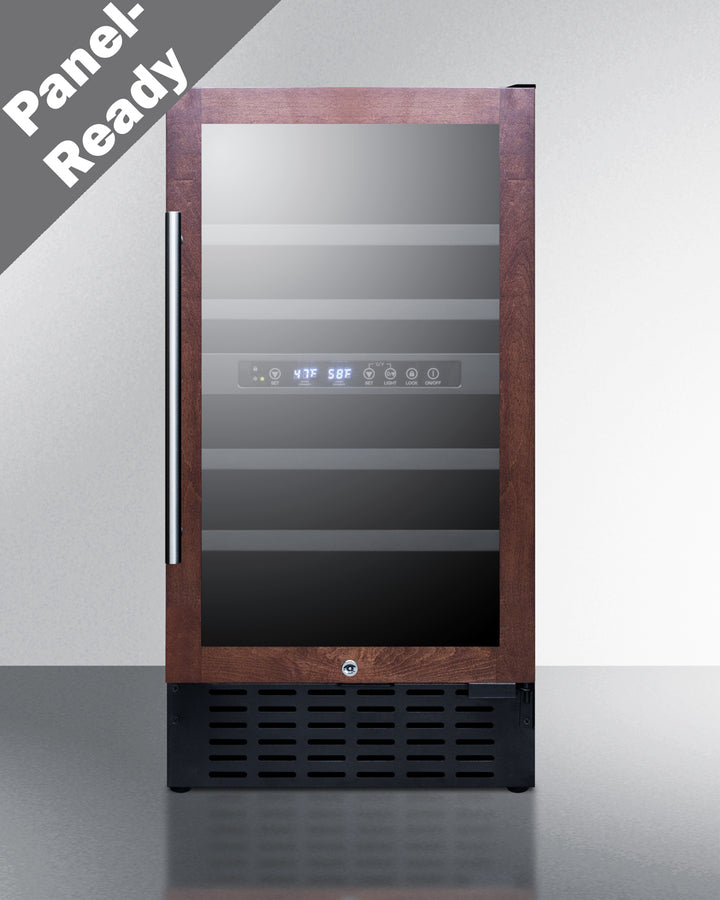

Sized just under 18" wide, the SWC182ZPNR is front-breathing for built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The glass door features a panel-ready stainless steel door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness). NOTE: this unit ships with a right hand door swing. For a left hand version, add option LHD.

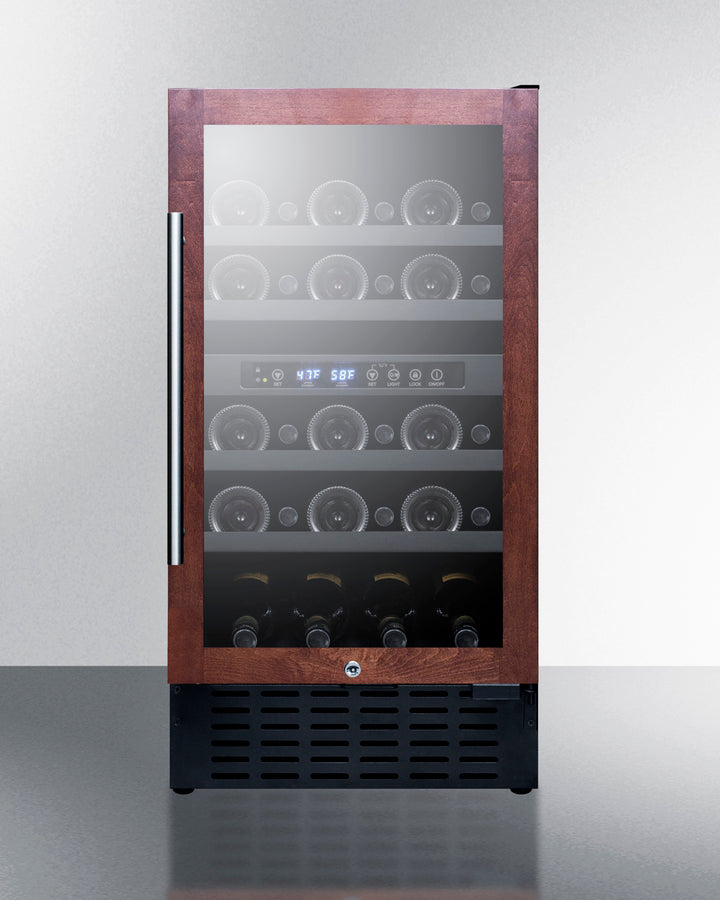

Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy-style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.
With its slim fit and convenient design, the SWC182ZPNR makes an attractive addition to any room. For this unit in a 32" ADA compliant height, see the SWC182ZPNRADA.
Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
Key Features
-
Commercially Approved
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Dual zone storageKeep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
Built-in capableMake the best use of space by installing your appliance under the counter
28 bottle capacityVersatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles
Panel-ready door trimDoor frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)
Glass doorDouble pane tempered glass to provide an elegant display with added protection
Factory installed lockKeyed lock for a secure interior, with 2 keys included
Digital thermostatElectronic controls for precise temperature management.
Digital displayTemperature readout can be shown in Celsius or Fahrenheit
LED lightingGentle illumination for each temperature zone for an elegant presentation
Wooden shelves4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
Automatic defrostReduced maintenance with the convenience of auto defrost
Professional handleStainless steel handle completes the look
Integrated door hingeHinge is flush with cabinet, adding no height to the unit
Fully finished black cabinetAllows the unit to be used freestanding
100% CFC FreeEnvironmentally friendly design with no ozone-damaging chemicals
CARB CompliantEnvironmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
|
|
---|---|
Height of Cabinet | 34.25" (87 cm) |
Width | 17.75" (45 cm) |
Depth | 23.5" (60 cm) |
Depth with door at 90° | 39.75" (101 cm) |
Capacity | 3.3 cu.ft. (93 L) |
Bottles | 28 bottles |
Defrost Type | Automatic |
Door | Glass/Panel-Ready Frame |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.25 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 95.0 lbs. (43 kg) |
Shipping Weight | 98.0 lbs. (44 kg) |
UPC | 761101073736 |
Wine Cellar
|
|
Number of Zones | 2 |
Door Swing | RHD |
Reversible | Factory Reversible |
Shelf Type | Wood |
Shelf Qty | 4 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.23 oz. |
High Side PSI | 150.0 |
Low Side PSI | 50.0 |
Interior Height 1 | 10.63" (27 cm) |
Interior Width 1 | 14.25" (36 cm) |
Interior Depth 1 | 18.0" (46 cm) |
Compressor Step Height | 5.25" (13 cm) |
Compressor Step Width | 14.25" (36 cm) |
Compressor Step Depth | 5.0" (13 cm) |
Level Legs | 4 |
Temperature Range | 41º to 64ºF |
Interior Height 2 | 12.25" (31 cm) |
Interior Width 2 | 14.25" (36 cm) |
Interior Depth 2 | 18.0" (46 cm) |
Available Upgrades
Exterior | |||||
---|---|---|---|---|---|
|
|||||
Door | |||||
|
Included Warranty
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
