Description

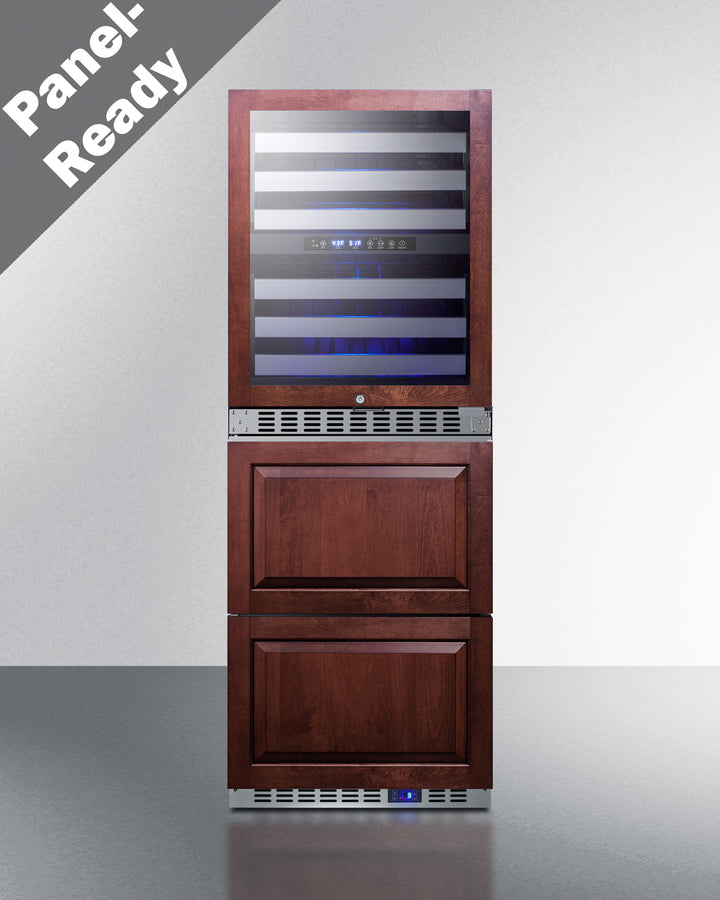

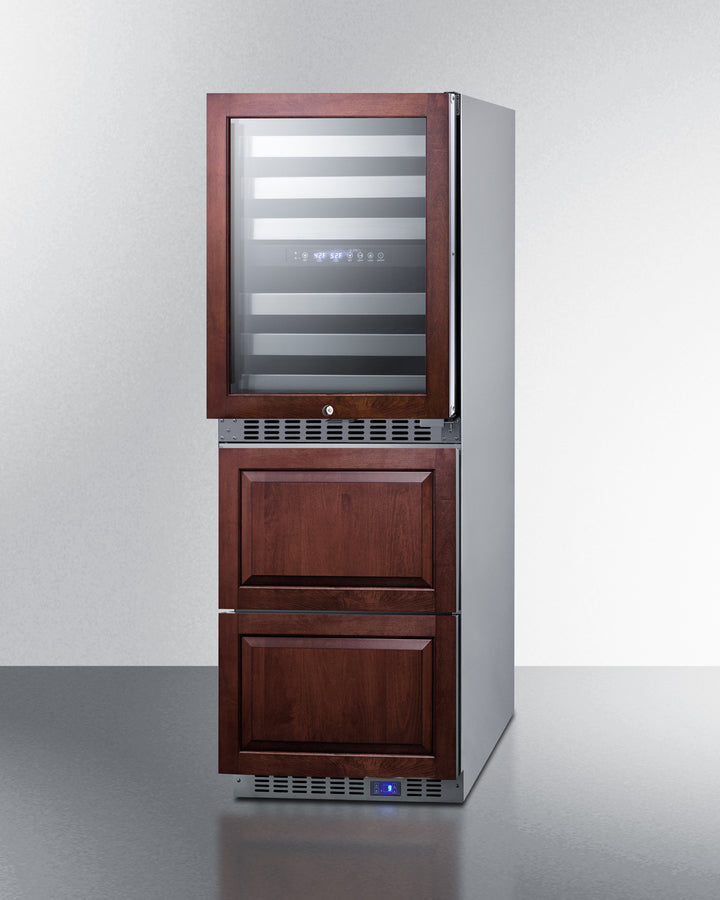

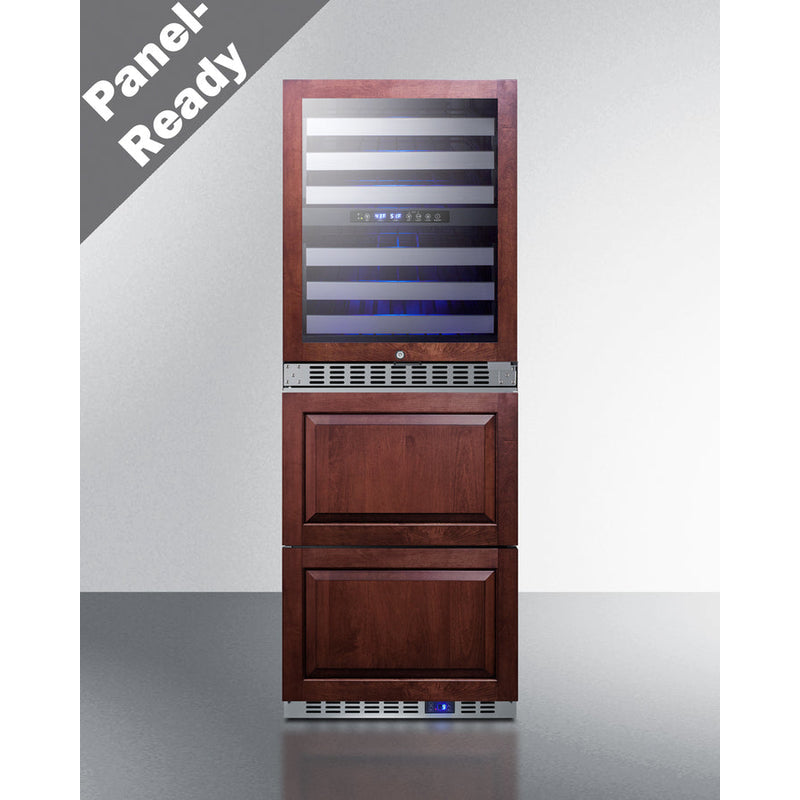

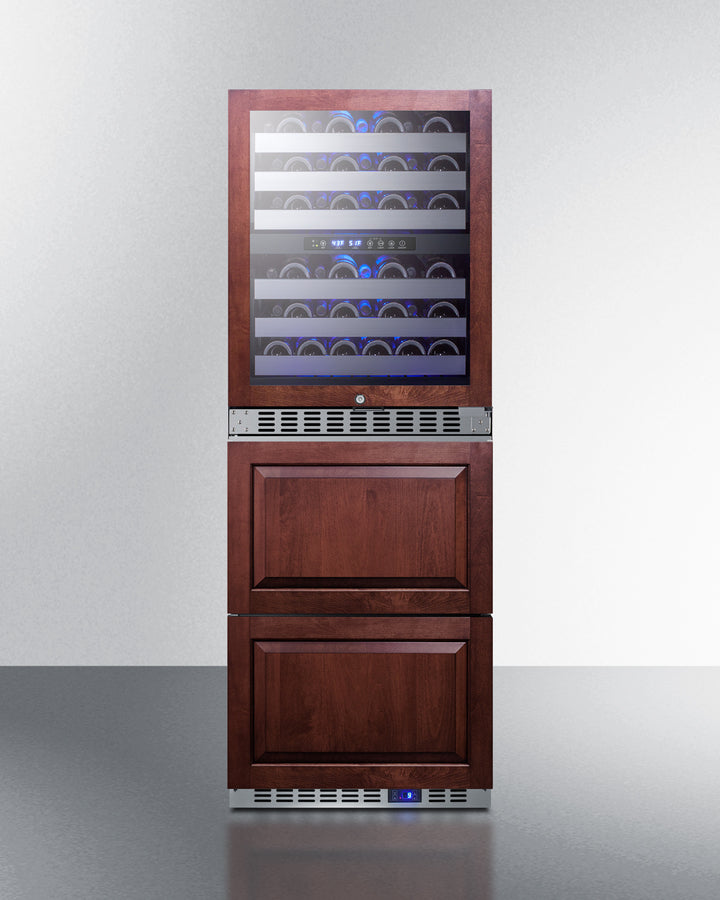

Summit brings an innovative, elegant solution to store wine and food with its combination two-zone wine cellar and two-drawer freezer - the perfect entertainment station for the home.
Offering complete refrigeration convenience in a slim-fitting design, the SWCDAF24PNR is ideal for home bars, kitchens, and similar residential settings seeking to store wine, beverages, and food in a modern style. Additional panel-ready options are available with a bottom refrigerator (model SWCDAR24PNR) or a bottom refrigerator-freezer (model SWCDRF24PNR).
Key Features

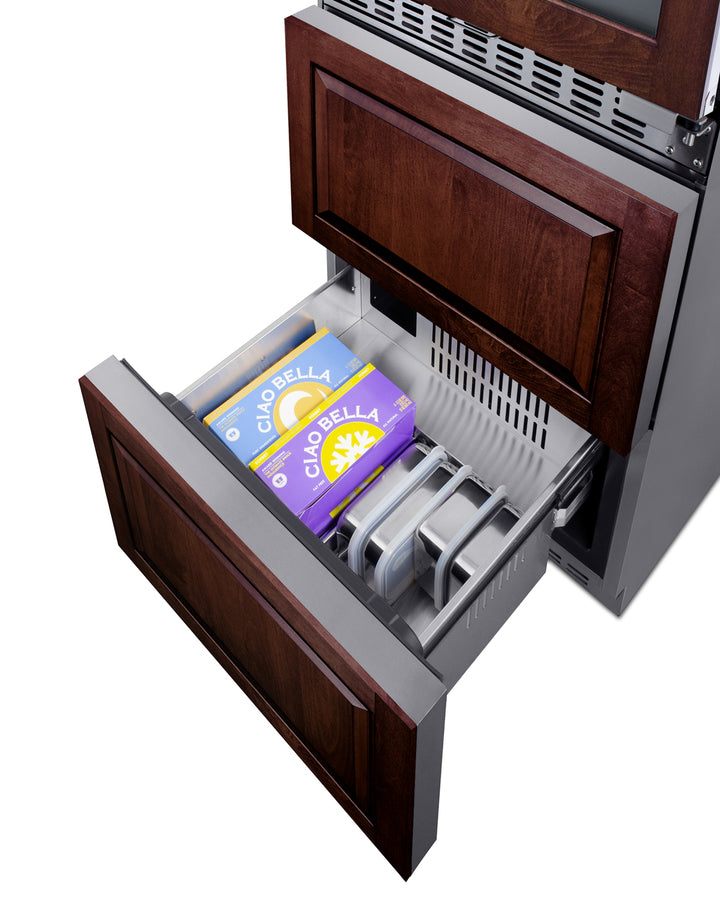

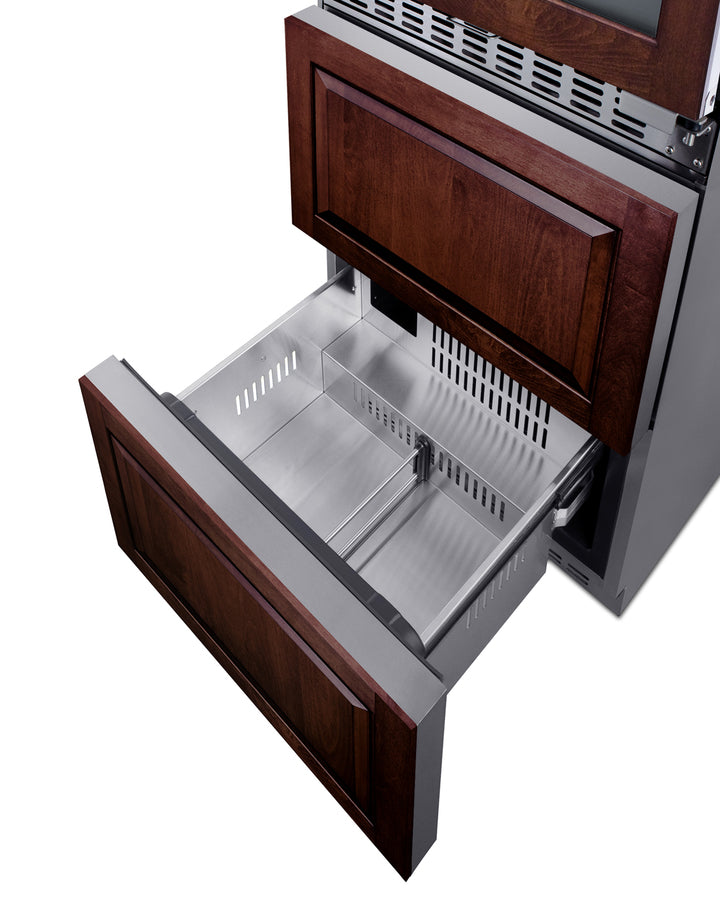

Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532PNR) and two-drawer all-freezer (model SCFF532D), perfect for home bars, kitchens, and similar residential spaces
Slim 24" wide fit offers full storage capacity in a compact footprint

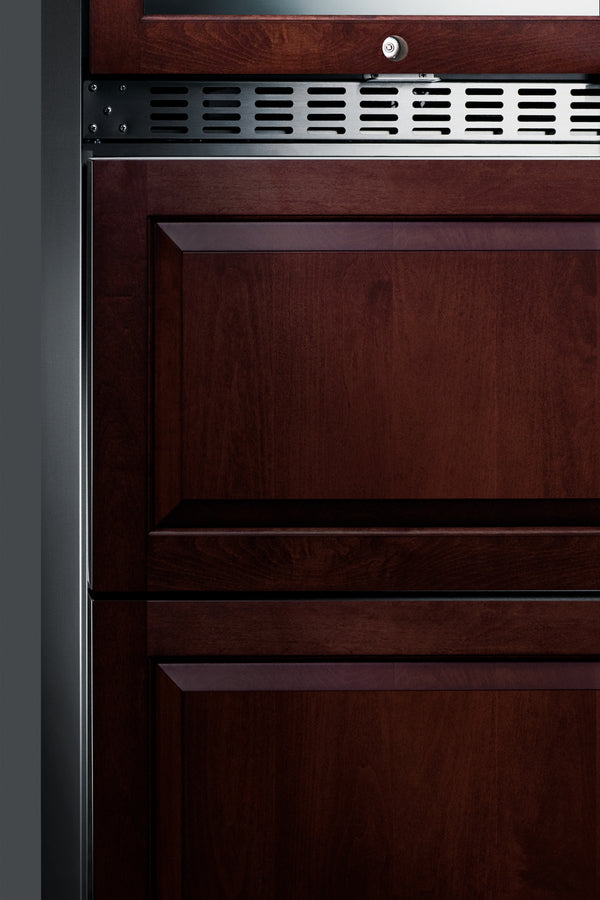

Front-breathing design allows this unit be built in for added space savings
Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

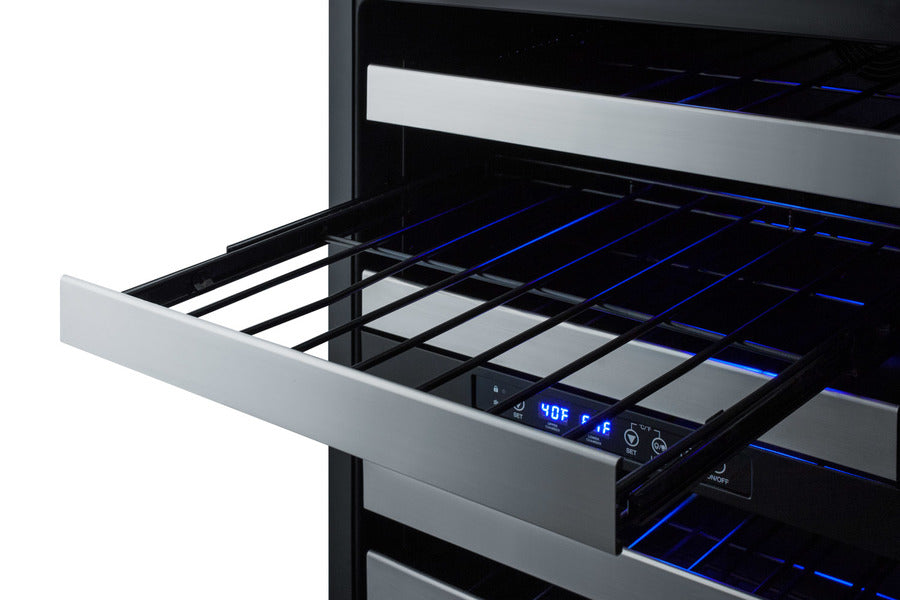

Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

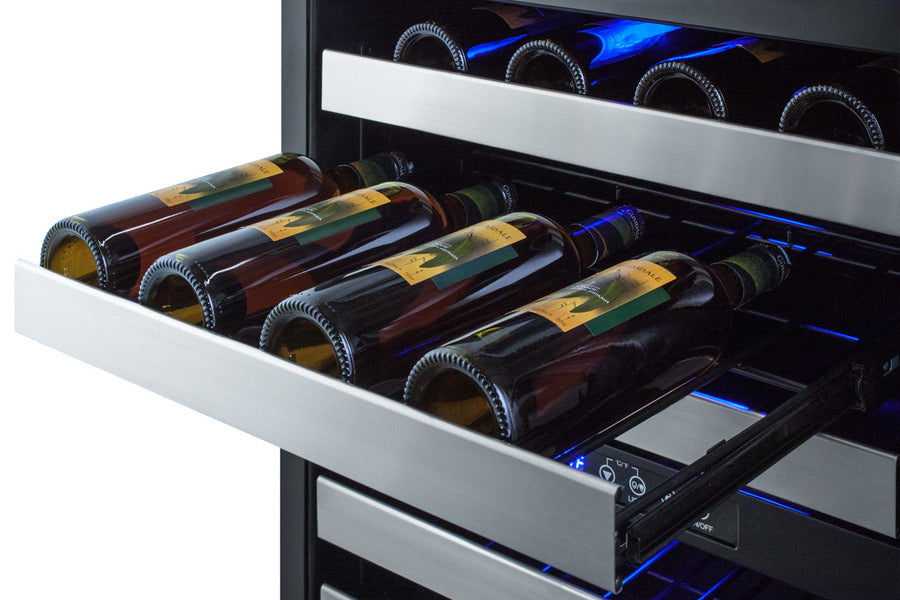

Shelves move smoothly on ball-bearing glides for easier loading and unloading
Reduced maintenance with auto defrost system

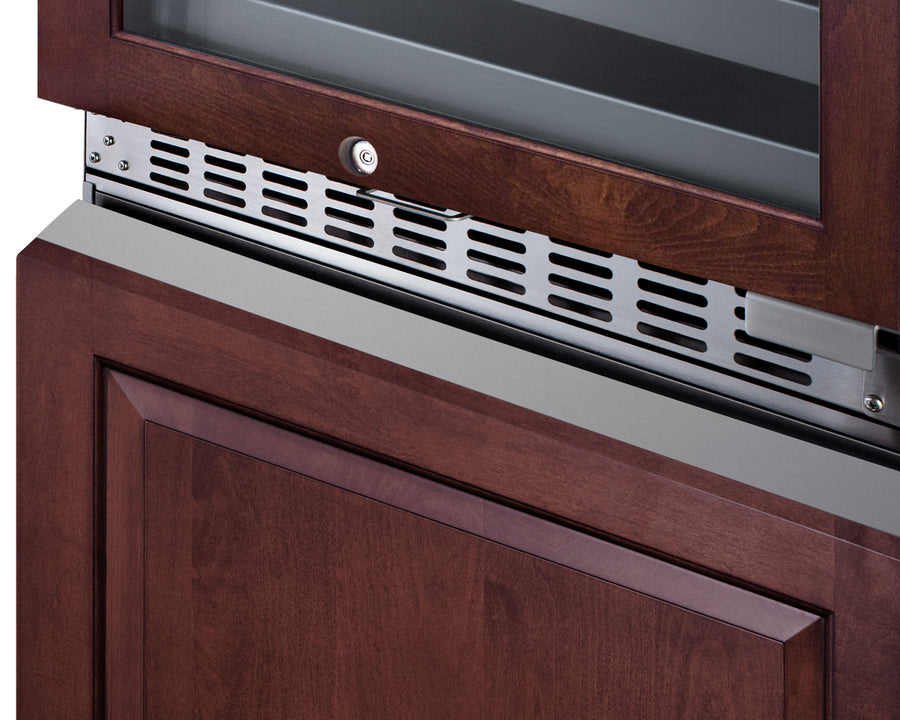

Keyed lock for secure interior, with two keys included
Unit ships with a right hand door swing. For a left hand door swing, order with option "LHD"

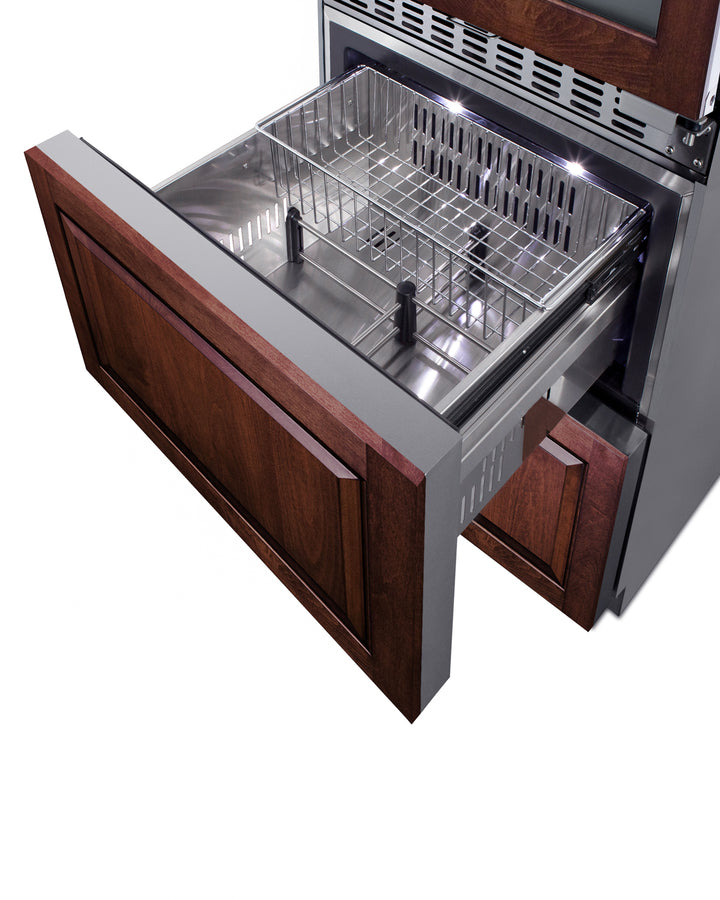

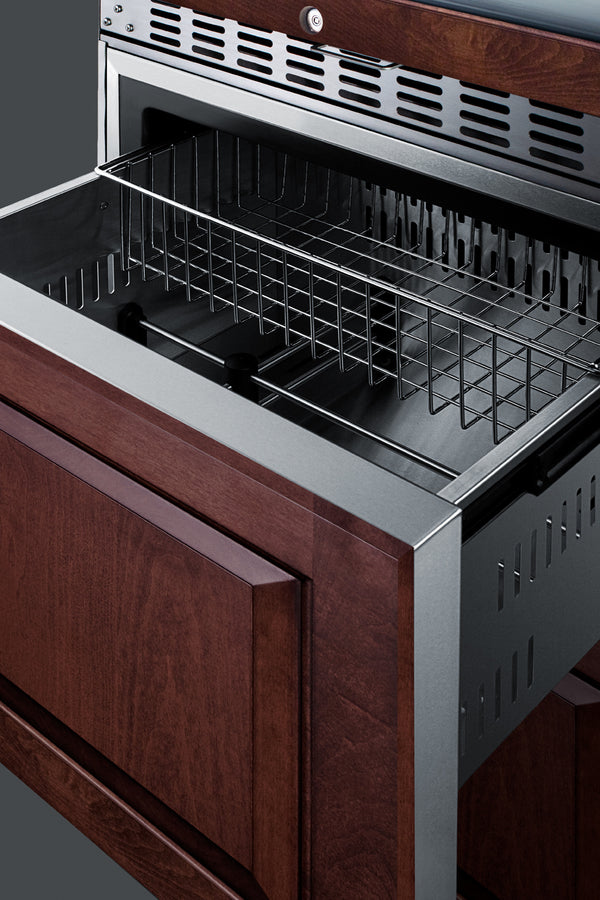

Removable chrome basket included for easier storage convenience
No-frost operation for minimum user maintenance
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Protects from everyday wear and tear in a durable, elegant design
Audible alarm will sound if the drawers are left ajar for over a minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Optional setting lets you disable the lighting and alarm for up to 48 hours

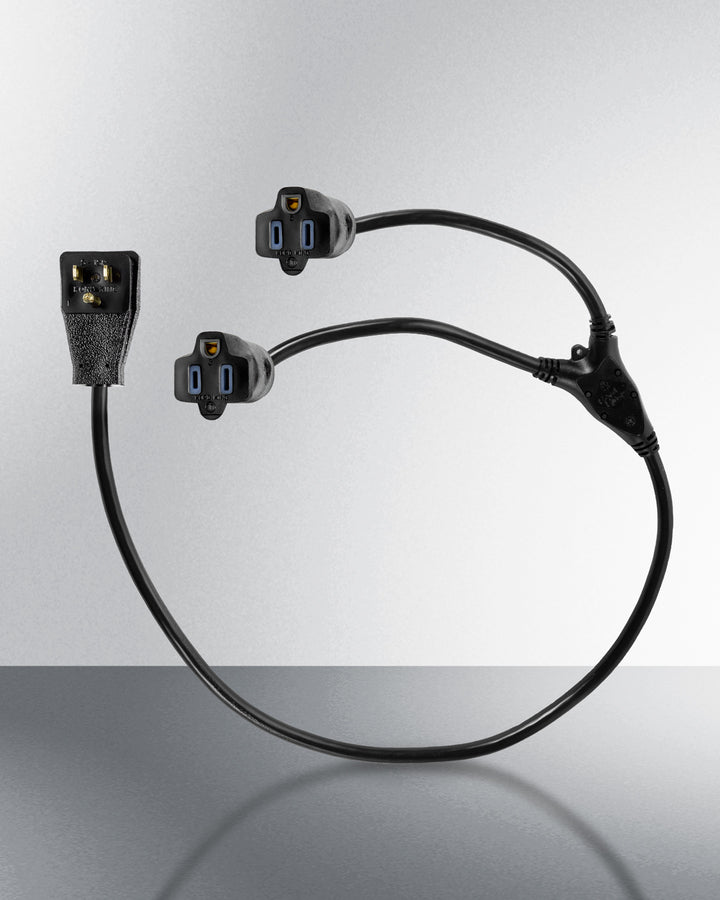

Included 6 ft. cord allows users to operate both the wine cellar & freezer using a single plug for added convenience
Included and recommended for user-installation to reduce the risk of tipping
Allows the unit to be used freestanding
Unit comes fully assembled for user convenience
This unit is also available with a bottom refrigerator (see the SWCDAR24PNR) or a bottom refrigerator-freezer (see the SWCDRF24PNR)
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
|
|
---|---|
Height of Cabinet | 65.63" (167 cm) |
Width | 23.63" (60 cm) |
Depth | 23.5" (60 cm) |
Depth with Handle | 25.5" (65 cm) |
Depth with door at 90° | 45.75" (116 cm) |
Capacity | 3.4 cu.ft. (96 L) |
Bottles | 46 bottles |
Defrost Type | Automatic |
Door | Glass/Panel-Ready Frame |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 405.0kWh/year |
Other Energy Info | ALWC532: 1.25Ams; SCFF532D: 0.8 Amps |
Amps | 2.05 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 229.0 lbs. (104 kg) |
Shipping Weight | 239.0 lbs. (108 kg) |
UPC | 761101082837 |
Wine Cellar
|
|
Number of Zones | 2 |
Door Swing | RHD |
Reversible | Factory Reversible |
Shelf Type | Wire |
Shelf Qty | 6 |

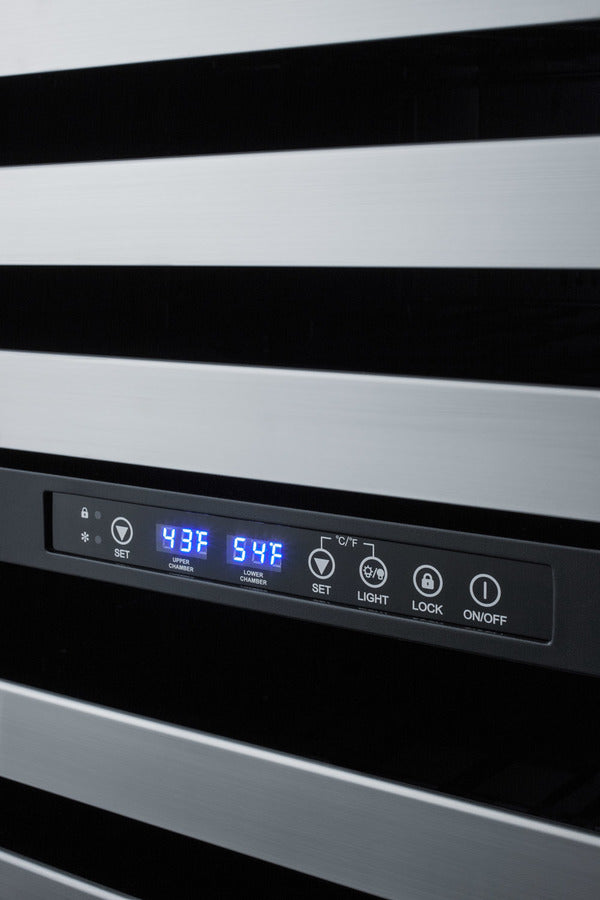

Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Interior Height 1 | 11.88" (30 cm) |
Interior Width 1 | 20.5" (52 cm) |
Interior Depth 1 | 18.0" (46 cm) |
Interior Height - Drawer 1 | 9.25" (23 cm) |
Interior Width - Drawer 1 | 17.25" (44 cm) |
Interior Depth - Drawer 1 | 15.5" (39 cm) |
Interior Height - Drawer 2 | 10.0" (25 cm) |
Interior Width - Drawer 2 | 17.25" (44 cm) |
Interior Depth - Drawer 2 | 15.5" (39 cm) |
Temperature Range | ALWC532: 41°F to 64°F; SCFF532D: -11° to 11°F |
Interior Height 2 | 11.63" (30 cm) |
Interior Width 2 | 20.5" (52 cm) |
Interior Depth 2 | 18.0" (46 cm) |
Available Upgrades
Exterior | |||||
---|---|---|---|---|---|
|
|||||
Door | |||||
|
Included Warranty
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
