Description
SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

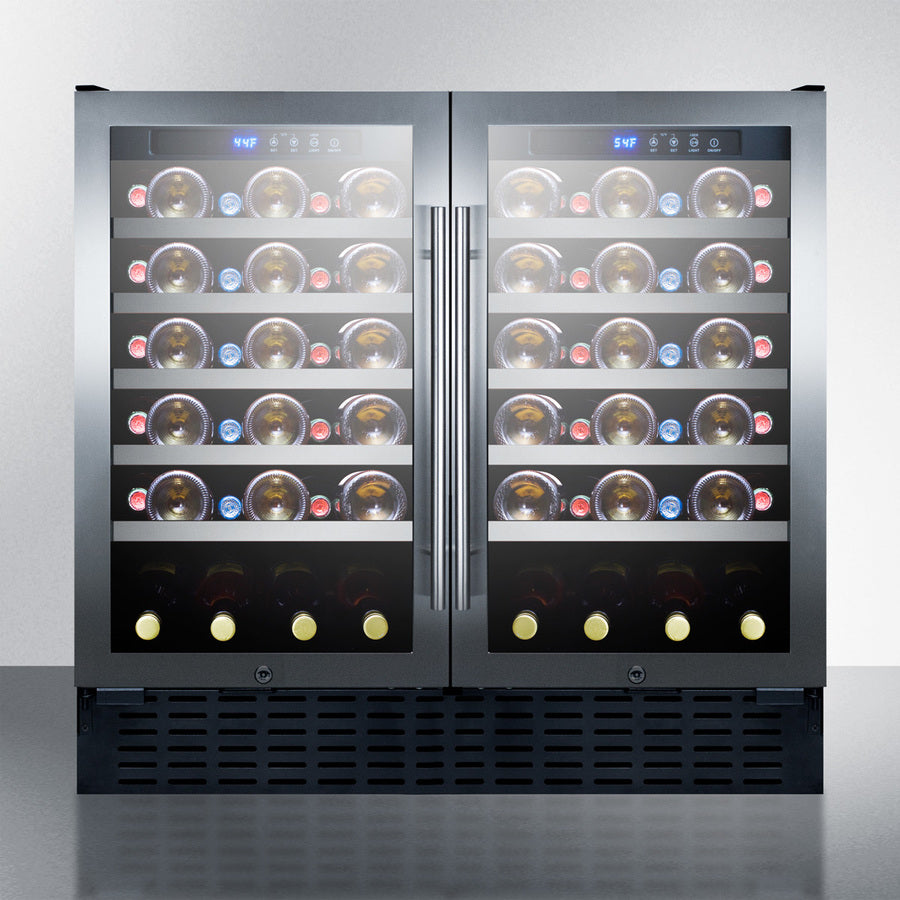

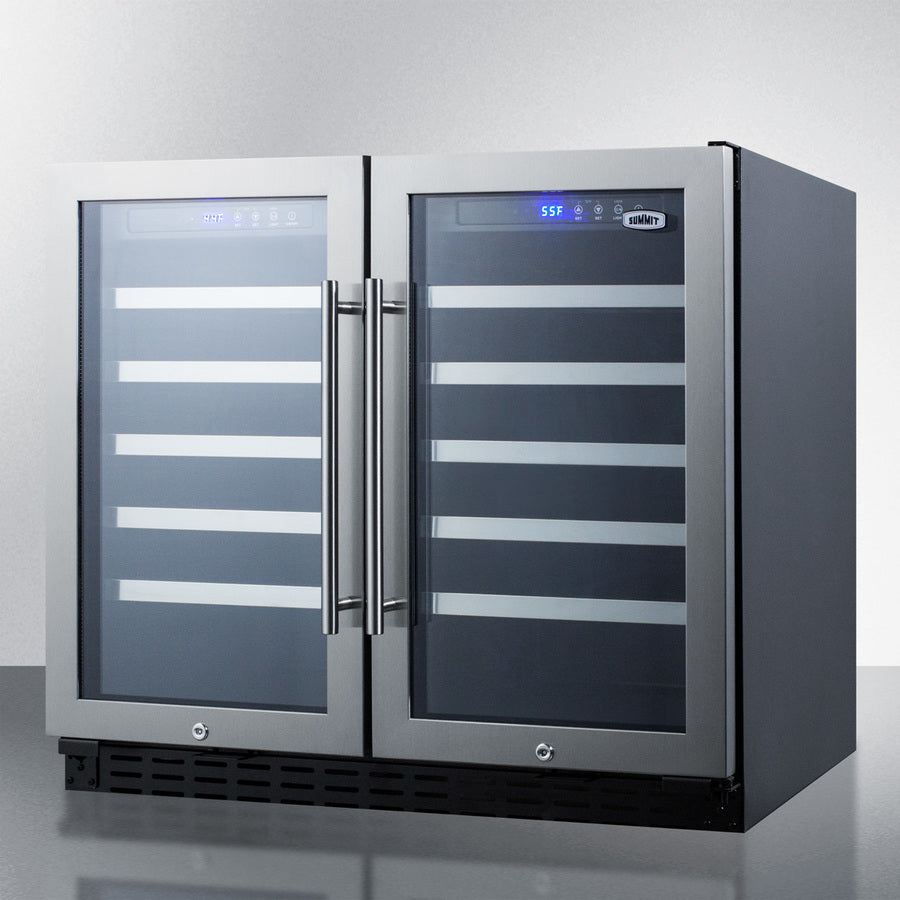

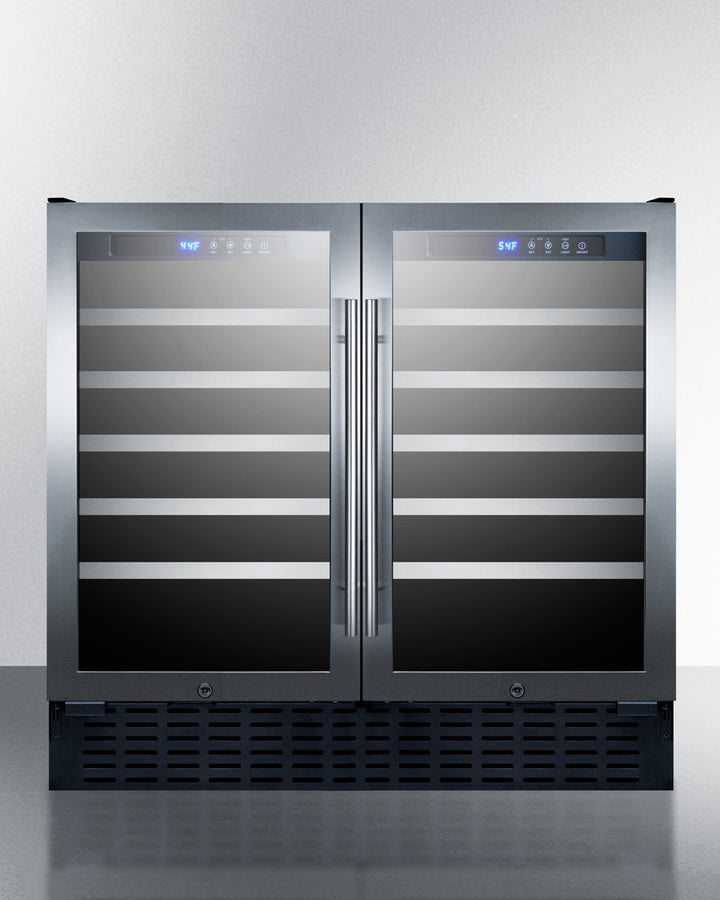

At just under 32" high and 36" wide, the SWC3668ADA wine cellar is designed for built-in installation under lower ADA compliant counters. The fully finished black cabinet also allows freestanding use. This unit includes two seamless stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks for added security and professional handles to finish the modern look.
Two separate zones feature independent digital thermostats, letting you chill white and sparkling wine in one section while preserving reds under warmer temperatures in the other. Both zones include five wooden shelves in a jet black finish with stainless steel trim, as well as slotted floors to accommodate champagne bottles. The interior can store up to 68 standard 750ml Bordeaux bottles. Alternatively, you can fit up to 56 wider "Burgundy" style bottles (often used for Chardonnay and Pinot Noir). Recessed LED lighting offers an attractive view to let you display your wine collection in style.
With a professional look and innovative design, SUMMIT SWC3668ADA is a unique addition to any home.
Key Features
Less than 32" high to fit under lower counters following ADA guidelines for accessibility
Make the best use of space by installing this unit under the counter and flush with other cabinetry
Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions
Interior can hold 68 standard 750ml Bordeaux style bottles, or 56 wider Burgundy bottles
Gentle and energy efficient LED lighting offers an elegant view of your collection

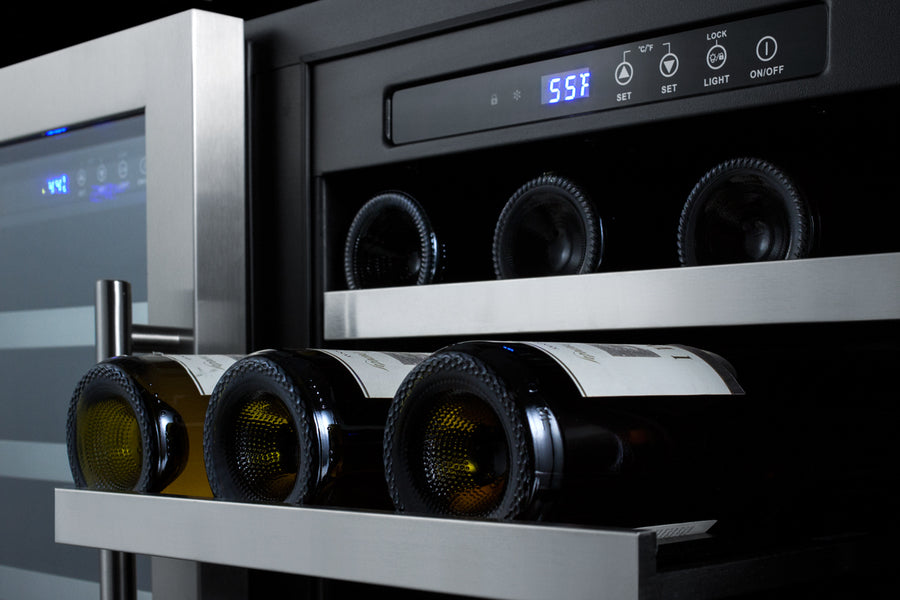

Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
Stainless steel trimmed wooden shelves with a jet black finish for a modern look
Sleek stainless steel handles add an elegant touch to any setting
French door swing for a more dramatic presentation
Door trim is completely seamless for a more luxurious look
Keyed locks on both zones offer separate security for interior contents
Reduced user maintenance with automatic defrost
Internal fans ensure both interiors have a consistent temperature from top to bottom
Space-saving design that ensures easier cleanup
Allows the unit to be used freestanding
ETL-S listed to ANSI-NSF Standard 7
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
|
|
---|---|
Height of Cabinet | 31.5" (80 cm) |
Width | 35.38" (90 cm) |
Depth | 23.5" (60 cm) |
Depth with Handle | 25.25" (64 cm) |
Depth with door at 90° | 39.75" (101 cm) |
Bottles | 68 bottles |
Defrost Type | Automatic |
Door | Glass |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.25 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 151.0 lbs. (68 kg) |
Shipping Weight | 158.0 lbs. (72 kg) |
UPC | 761101054940 |
Wine Cellar
|
|
Number of Zones | 2 |
Door Swing | French |
Adjustable Shelves | Yes |
Shelf Type | Wood |
Shelf Qty | 10 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.06 oz. |
High Side PSI | 150.0 |
Low Side PSI | 50.0 |
Interior Height 1 | 23.0" (58 cm) |
Interior Width 1 | 14.0" (36 cm) |
Interior Depth 1 | 18.0" (46 cm) |
Compressor Step Height | 5.0" (13 cm) |
Compressor Step Width | 14.0" (36 cm) |
Compressor Step Depth | 5.0" (13 cm) |
Level Legs | 4 |
Temperature Range | 40 to 72ºF |
Interior Height 2 | 23.0" (58 cm) |
Interior Width 2 | 14.0" (36 cm) |
Interior Depth 2 | 18.0" (46 cm) |
Sound Level | 36.0 dB |
Available Upgrades
Exterior | ||||
---|---|---|---|---|
|
||||
Door | ||||
|
Included Warranty
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
